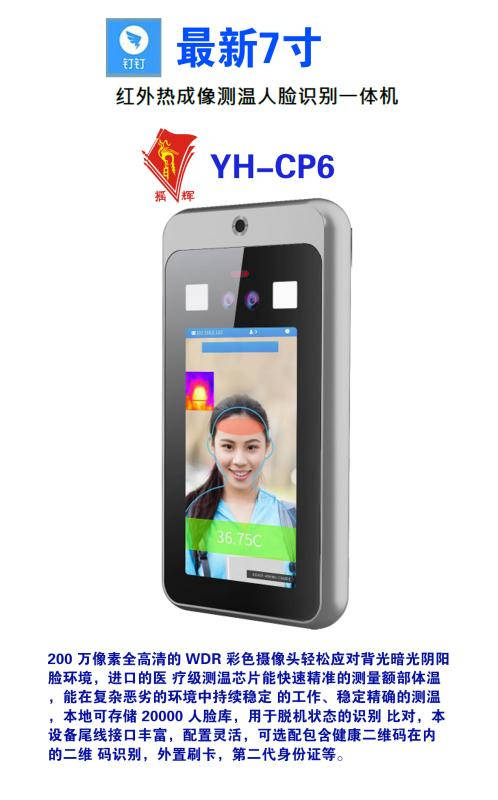

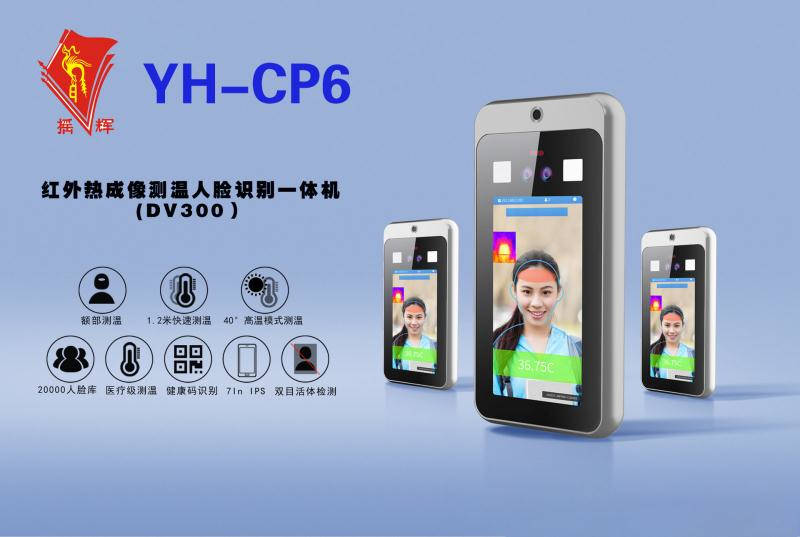

1. Product description

The machine is based on the deep learning face front to identify tablet (DV300 scheme), very spirit live features, adopt haisi industrial-grade embedded Linux platform, built-in neural network arithmetic processor, full hd 2 million pixels WDR color camera easily cope with backlit dark face environment of Yin and Yang, the import of the medical treatment level measuring WenXin can fast accurate measurement of forehead temperature, can continue in complex bad environment stable job, stable and accurate temperature measurement, local libraries can store 20000 human face, used for offline recognition, this equipment is the tail line interface is rich, Flexible configuration, can be equipped with two-dimensional code including health two-dimensional code recognition, external swipe card, second generation ID card, etc.

2. Product features
2.1. Reliable identification and comparison of offline use
The machine is mainly used for channel face recognition and comparison, non-contact temperature screening and warning, and access port control. It can also cooperate with the cloud platform to form a smart campus, smart community, smart park, smart site, etc.
◆ 1/2.8 "wide dynamic low illumination CMOS, image resolution 1920(H)*1080(V), frame rate up to 25 frames;
◆ Low illumination CMOS, 0.01Lux@(F1.2, AGC ON);
◆ High-performance embedded processor integrates image acquisition, face detection, face tracking, face comparison and in vivo judgment.
◆ Autonomic CNN neural network algorithm, dynamic recognition without special cooperation;
◆ Supports output of panoramic image and local close-up image;
◆ Support identification of portrait, helmet, mask, etc.;
◆ Support QR code recognition (including health code);
◆ Accurate and rapid temperature measurement in harsh environment (up to 40 degrees); The maximum support 1.2m frontal temperature measurement;
◆ Support the people-witness comparison mode;
◆ Recognition speed ≤80ms, recognition rate ≥99%;
◆ Support 2W portrait library;
◆ Support video overlay; Support for the Wigan Agreement;
◆ Lightning protection and surge protection measures;
2.2 Efficient group management
This machine series supports access to pin, enterprise WeChat makes team management more convenient and efficient.
2.3 Efficient channel control
For the channel with large human flow and intensive traffic, the machine can perform efficient local snapshot comparison and non-contact temperature screening and warning. It can also capture the face information within 2 meters of the machine and report the data to the designated background, realizing multi-level linkage.

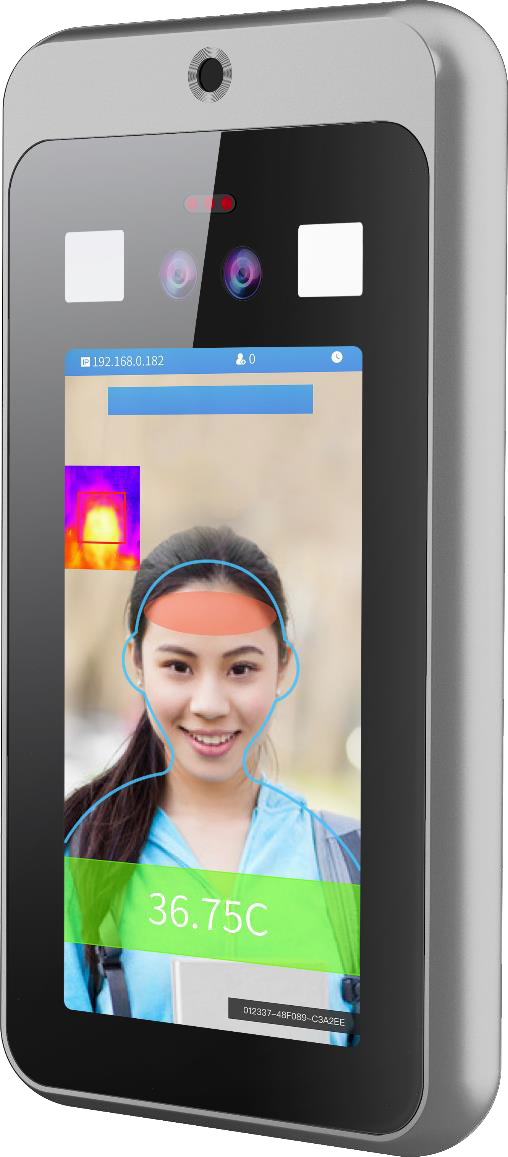

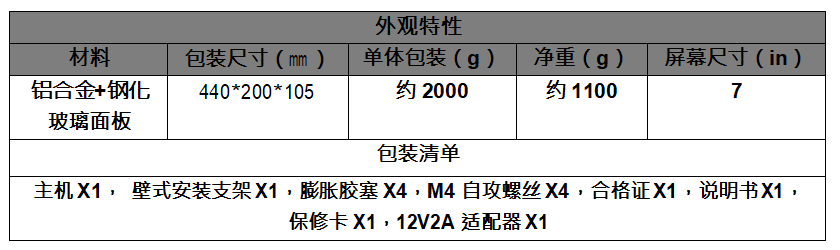

2.4 Appearance characteristics

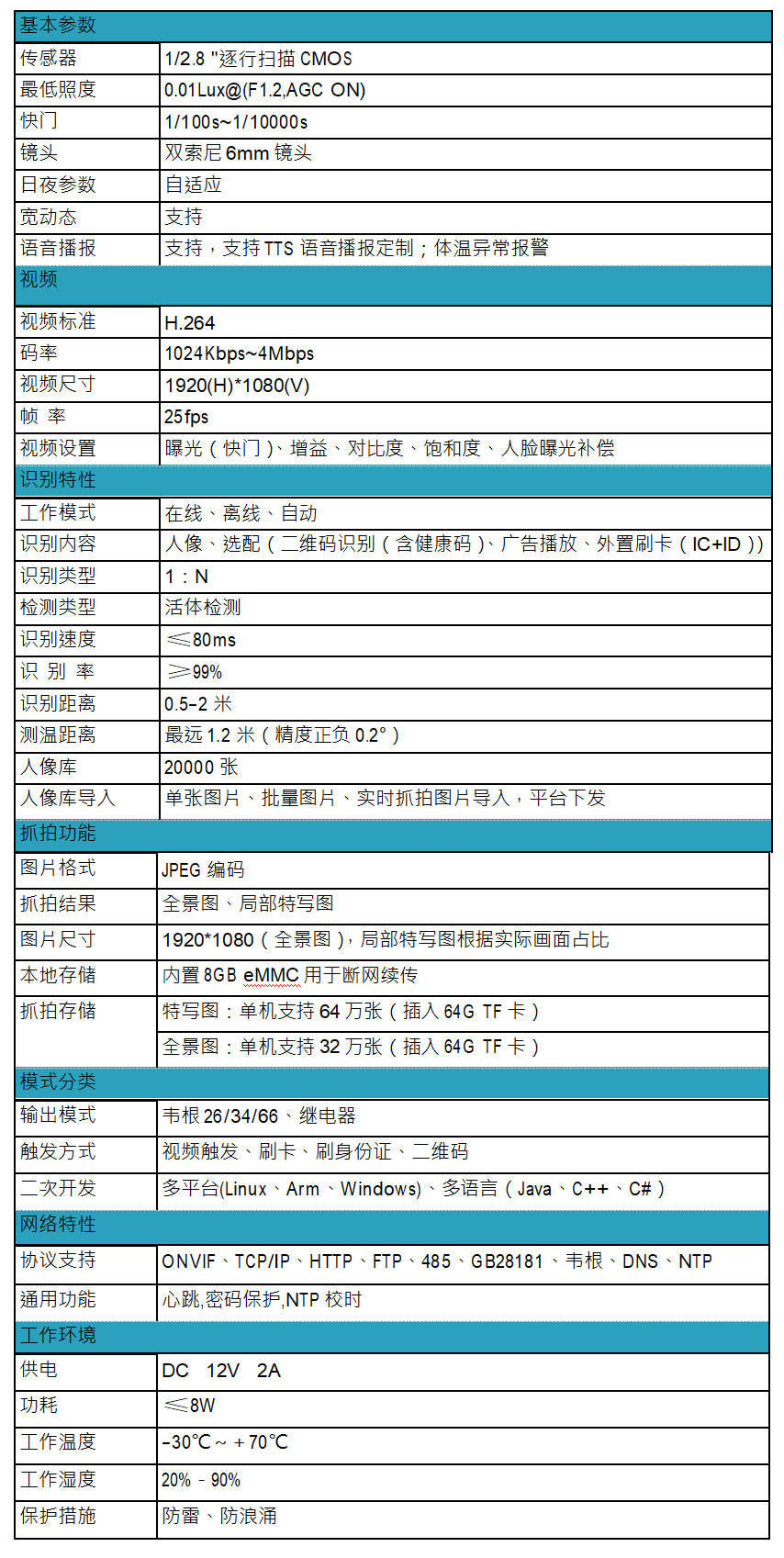

3. Specifications and detailed parameters


4. Quick installation

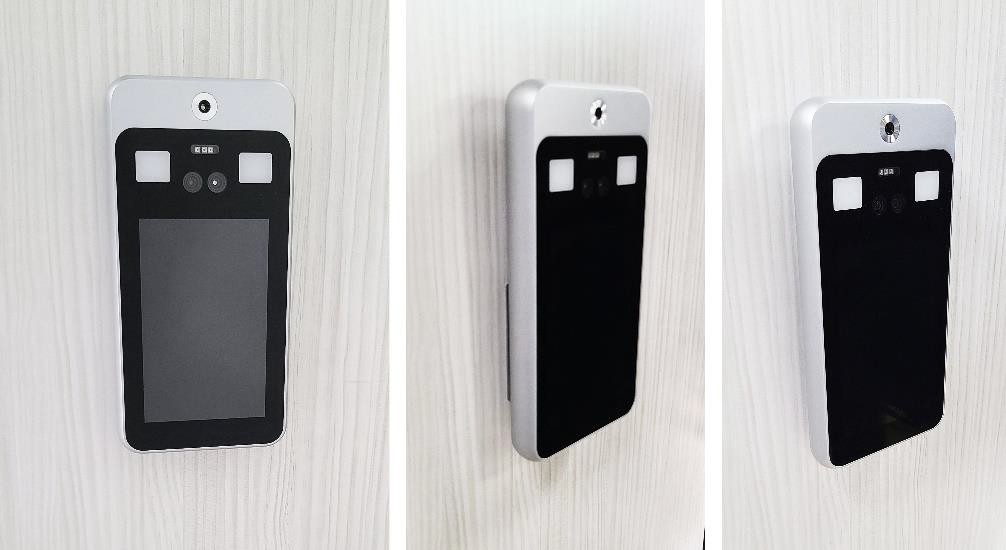

4.1. Installation of standard accessories bracket

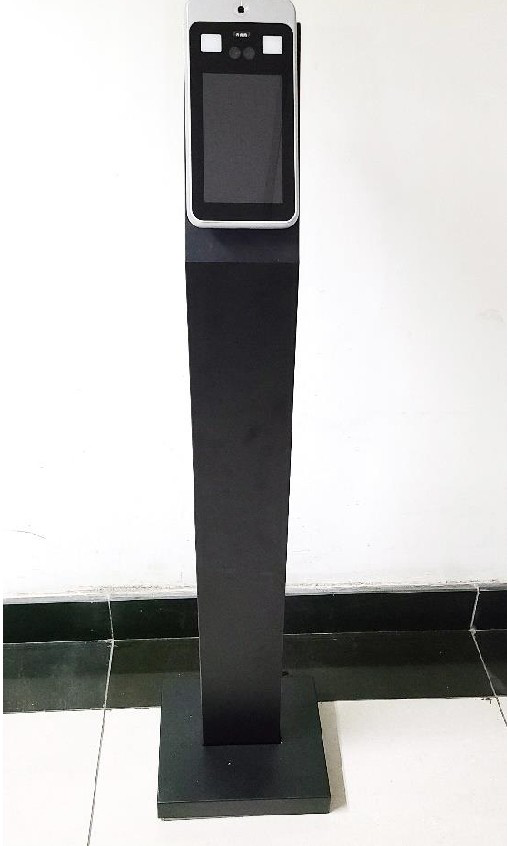

(4.2)


5
